CE ISO Faucet CNC Polishing Machine Sanitary Fittings Polishing Equipment

Brand Name : DZ

Model Number : NC-62/64

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30sets/per month

Delivery Time : 30days

Packaging Details : wood

Weight : 6000KG

Voltage : 380V/50Hz

Condition : 100%New

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation

Dimension(l*w*h) : 4400X3400X2900

Application : Metal polishing

Control system : PLC

Warranty : 1 Year

Name : Fully Automatic Stone Polishing Machine

Function : polishing granite

Contact Now

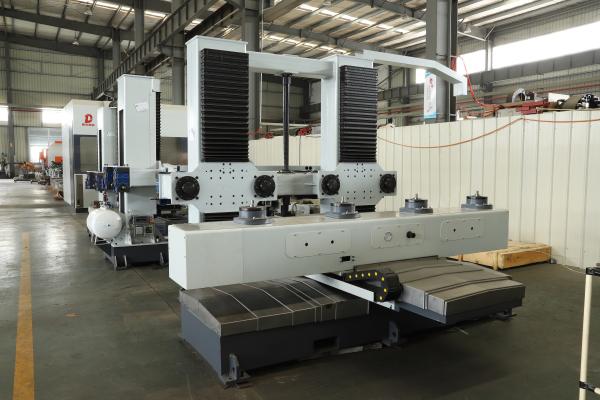

Faucet polishing machine advanages:

1. Four working stations work simultaneously and with one time programming,the machine can finish the polishing and buffing jobs of four workpieces at the same time.

2. Precision angle polishing program has been adopted which can enhance precision polishing degree on the complex part of the product through programming on setting precision polishing angle.

3. Nested Precise polishing way has been adopted for precise polishing on overall parts of products.

4. All New Design,All new structure

5. High Density Dust Removal Design,automatic lubrication system, ball linear guideway, increase the life the machine dramatically.

II:Main technical parameters
#	Item	Parameter	Remarks
1	Size	3000×3160×2772(L×W×H)
2	Power	16.25KW
3	Rated Voltage	380V 50Hz
4	Max. Polishing Mop Diameter	600mm
5	Min. Polishing Mop Diameter	400mm
6	X Axis Travel	1100
7	Y Axis Travel	900
8	Z Axis Travel	700
9	U Axis Travel	±60°
10	V Axis Travel	±360°
11	Operating Voltage	380V
	Table Size (LxW)	2740*375mm
	Height from Ground (without fixture)	880mm
	Jig Rotating Speed	20RPM
	Station Size/Working Dia (max)	350mm
	Station Rotational speed Motor	1500rpm
III	BASIC EQUIPMENT
#	Item	Brand	Remark
1	Motion control system	PROMAX Italy
2	Servo motor	PROMAX Italy
3	Variable frequency compensation system+Control card	AELTA
4	Cloth wheel motor spindle	SIEMENS
5	Main low voltage electrical	SCHNEIDER
6	Linear guide rail and screw	HIWIN
7	Reduction box	Rossi Italy
8	Bearing	NSK
9	Steering gear of fixture	TAIWAN
10	Components clamping	Penumatic
11	Table Type	Movable - table moving by the screw rod/ball screw. Driven by servo motor
